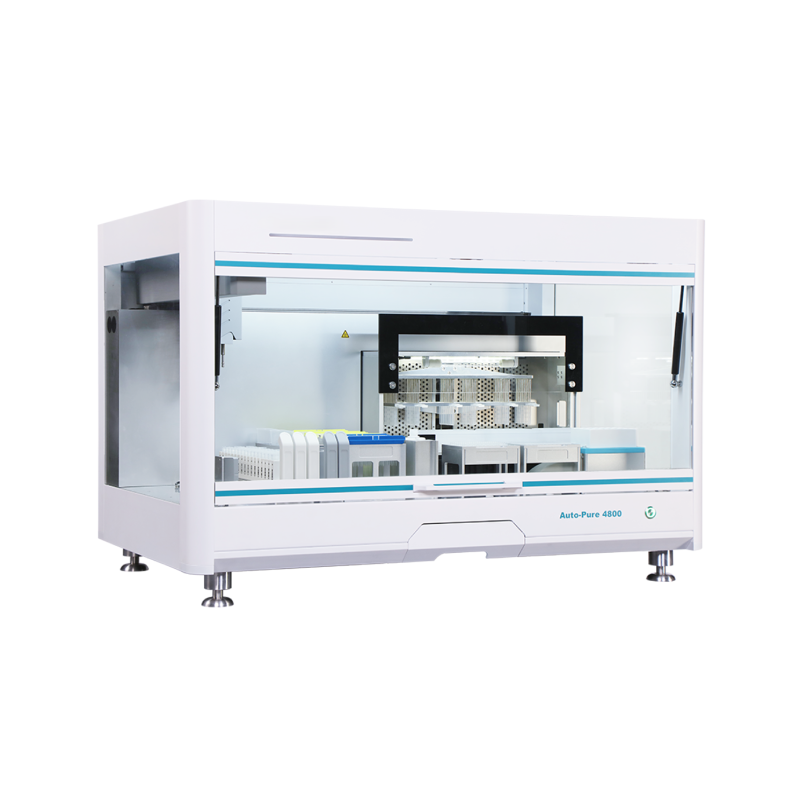

Fully Automated Nucleic Acid Extraction Instrument - Auto-Pure 4800

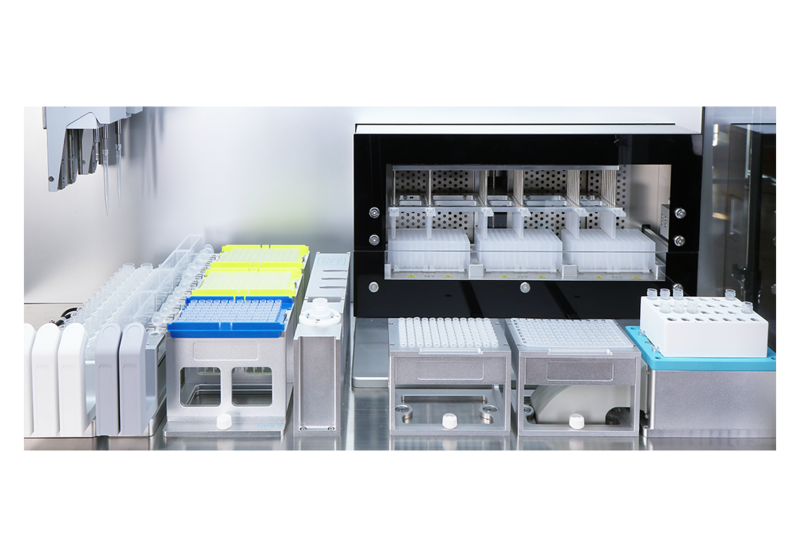

Auto-Pure series automatic nucleic acid extraction and purification instrument is a high-throughput automatic nucleic acid extraction equipment, the instrument is based on the magnetic bead method to extract nucleic acids, the purification process of pipetting, lysis, washing, elution, the construction of the PCR system and other steps are automatically completed in the workstation, one-stop operation, without human intervention, and can be extracted at the same time 48X1ml (4800/4800M) or 24X10ml (2400/2400M) sample system, compared with the manual extraction, efficient and convenient at the same time, standardised, automated operation steps to avoid human error. It can extract 48X1ml (4800/4800M) or 24X10ml (2400/2400M) samples at the same time. Compared with manual extraction, it is highly efficient and convenient, while the standardised and automated operation steps can avoid human errors, which makes the results of the experiments more reliable and more reproducible.
Technical Parameters
Model No.: Auto-Pure 4800/Auto-Pure 4800M Automatic Nucleic Acid Extractor
Functions: automatic sample filling, nucleic acid extraction and PCR reaction system construction.
Information management: support for external USB scanning gun, the sample area comes with barcode scanning function, inserted into the sample rack automatic scanning entry
Pipetting principle: air displacement pipetting technology
Number of pipettes: two for single lane 1000u, one for single lane 200μL.
Pipetting range: 1-1000μL
Matching tips: our tips, and other compatible with the instrument's domestic / imported tips
Liquid detection: Pipette gun with integrated pneumatic liquid level detection, tip clogging detection and residual liquid volume detection.
Number of samples extracted at one time: 1-48
Nucleic acid extraction volume: 50-1000μL
Extraction uniformity: CV ≤ 5%
Single sample consumables: support
Extraction temperature control: elution, lysis temperature control: room temperature ～ 120 ℃.
Reagent refrigeration module: optional, 0℃~105℃
Temperature control module (Auto-Pure 4800M): 4℃~105
UV sterilisation: extraction area, pipetting area and disposal area are independently equipped with UV sterilisation function.
Fan Filtration: Equipped with three HEPA high-efficiency filters
Instrument interface: USB interface
Power supply: 220V,8A,50/60 Hz
Power: standby 30W, maximum 550W
Noise: ≤60dB
Net weight: 130kg
