JN-163b Arm Type Electronic Blood Pressure Monitor
Intelligent pressurisation
Intelligent pressurisation, three-dimensional cuff; with new automatic only pressurisation technology, smooth pressurisation, comfortable measurement and better experience.

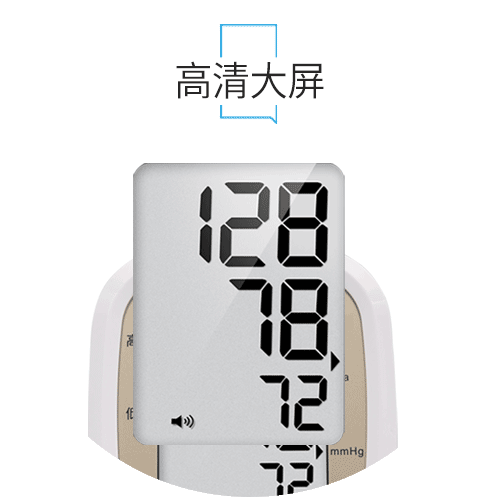

High-definition large screen
Large high-definition screen, easy to read, effectively protect the eyes of the elderly, measurement results at a glance, clear readings, intuitive.

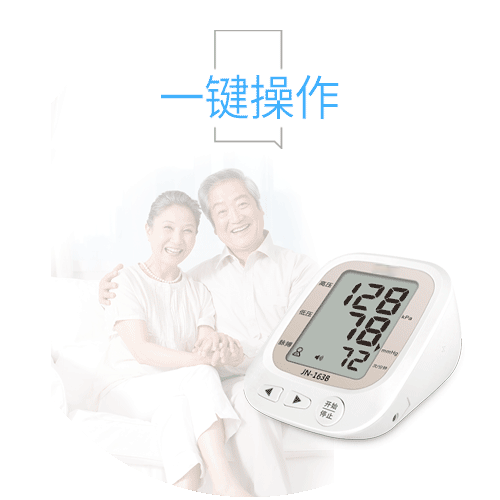

One-button operation
The old man on the hand will use, simple and durable, can measure blood pressure independently, easy to operate, automatic shutdown without having to remember to hang, save time and electricity.

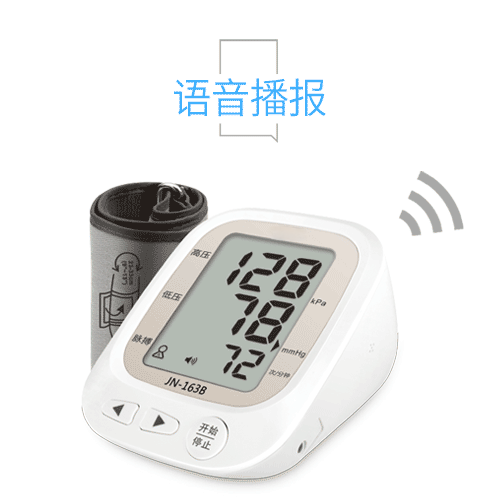

Voice Announcement
Measurement of the whole process of real voice announcement, the results can be heard, easy to operate, the elderly can be independently operated, do not need to see but also hear the blood pressure monitor.
Technical specifications
|
Name |
Arm-type electronic sphygmomanometer |
|
Specification/Model |
JN-163B |
|
Display method |
liquid crystal display (LCD display) |
|
Measurement method |
Oscillometric method |
|
Measuring range |
Blood pressure: 0-280mmHg (0-37.3kPa) Pulse: 30-180 beats/minute |
|
Accuracy |
Blood pressure: Within ±3mmHg (±0.4kPa) Pulse: Within ±5% of reading |
|
Pressurisation |
Pressure pump automatic pressurisation method |
|
Exhaust |
Automatic rapid exhaust method |
|
Pressure detection |
Resistive pressure sensor |
|
Memory |
Display the values of systolic pressure, diastolic pressure and pulse rate measured in the previous measurement, up to 99 sets of memory. |
|
Power supply |
DC6V 4 x 7 (AAA LR03) dry cell batteries. |
|
Battery life |
If using alkaline dry batteries at room temperature of 23℃, 3 measurements per day pressurised to 170mmHg (22.7kPa) can be taken for about 250 measurements. |
|
Operating conditions |
Temperature 5℃-40℃(41~104℉); Relative humidity: 15%RH-80%RH; Atmospheric pressure: 86Kpa~106Kpa |
|
Transportation and storage temperature and humidity |
Temperature: -20 to 55℃(-4 to 131℉) Humidity: 10% to 93%RH |
|
Automatic switch-off |
After starting the sphygmomanometer, if there is no action, the sphygmomanometer should be able to switch off automatically within 5 minutes. |
|
Body weight |
about 280g |
|
Overall dimensions |
115mm×135mm×83mm |
|
Suitable arm circumference |
22～32cm |
|
Accessories |
cuff, instruction manual (including certificate of conformity, warranty), colour box |
|
Structure and composition |
the product consists of the host and the cuff. |
|
Scope of application |
suitable for human blood pressure measurement |
|
Use term |
5 years |
Operation Methods
Please read the instruction manual carefully.
 |
 |
 |
