JN-163d Arm Type Electronic Blood Pressure Monitor

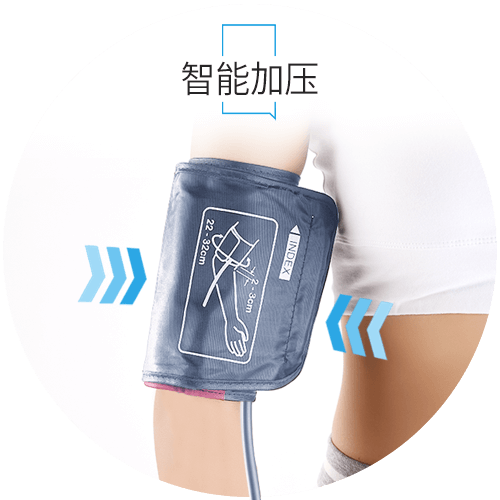

Intelligent Pressurisation
Intelligent pressurisation, three-dimensional cuff; with new automatic only pressurisation technology, smooth pressurisation, comfortable measurement and better experience.

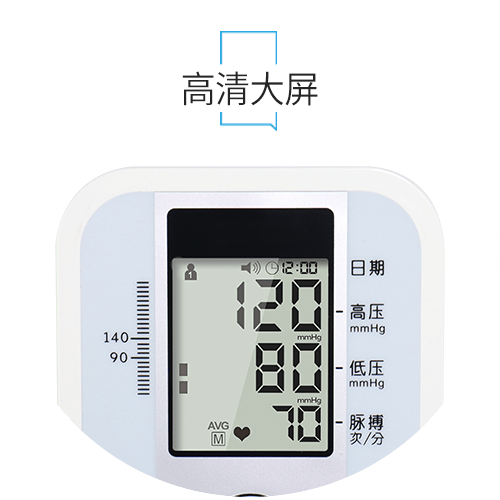

High-definition large screen
Large high-definition screen, backlight display, effectively protect the eyes of the elderly, measurement results at a glance, clear readings, intuitive.

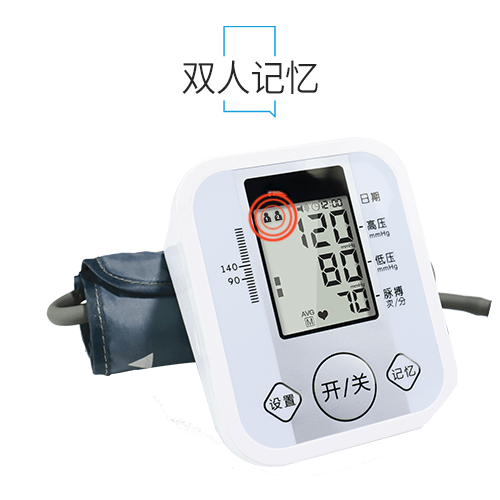

Memory
Mum and dad with the measurement, double memory, each 99 groups of large-capacity memory, the collection of a large number of hypertension patients clinical data results more stable and accurate.

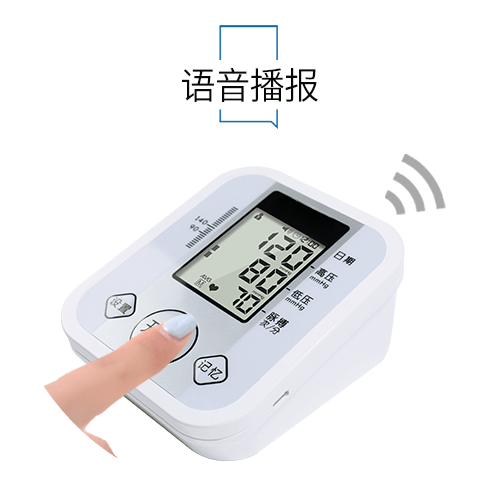

Voice Announcement
No need for presbyopia glasses, mum and dad can easily measure blood pressure, the whole real voice broadcasting, the results can be heard, simple operation, the elderly can operate independently.
Technical Specification
|
Name |
Arm type electronic sphygmomanometer |
|
Specifications/Model |
JN-163D |
|
Display method |
liquid crystal display (LCD display) |
|
Measurement method |
Oscillometric method |
|
Measuring range |
Blood pressure: 0-280mmHg (0-37.3kPa) Pulse: 30-180 beats/minute |
|
Accuracy |
Blood pressure: Within ±3mmHg (±0.4kPa) Pulse: Within ±5% of reading |
|
Pressurisation |
Pressure pump automatic pressurisation method |
|
Exhaust |
Automatic rapid exhaust method |
|
Pressure detection |
Resistive pressure sensor |
|
Memory |
Display the values of systolic pressure, diastolic pressure and pulse rate measured in the previous measurement, up to 99 sets of memory. |
|
Power supply |
DC6V 4 x 7 (AAA LR03) dry cell batteries |
|
Battery life |
If using alkaline dry batteries at room temperature of 23℃, 3 measurements per day pressurised to 170mmHg (22.7kPa) can be taken for about 250 measurements. |
|
Operating conditions |
Temperature 5℃-40℃(41~104℉); Relative humidity: 15%RH-80%RH; Atmospheric pressure: 86Kpa~106Kpa |
|
Transportation and storage temperature and humidity |
Temperature: -20 to 55℃(-4 to 131℉) Humidity: 10% to 93%RH |
|
Automatic switch-off |
After starting the sphygmomanometer, if there is no action, the sphygmomanometer should be able to switch off automatically within 5 minutes. |
|
Body weight |
Approx. 300g (including colour box) |
|
Dimensions |
159mm×103.5mm×52.5mm |
|
Suitable for arm circumference |
22～32cm |
|
Accessories |
cuff, instruction manual (including certificate of conformity, warranty), colour box |
|
Structure and composition |
the product consists of the host and cuffs |
|
Scope of application |
suitable for human blood pressure measurement |
|
Use term |
5 years |
Operation Methods
Please read the instruction manual carefully.
 |
 |
 |
