JN-163FB Arm Type Electronic Blood Pressure Monitor

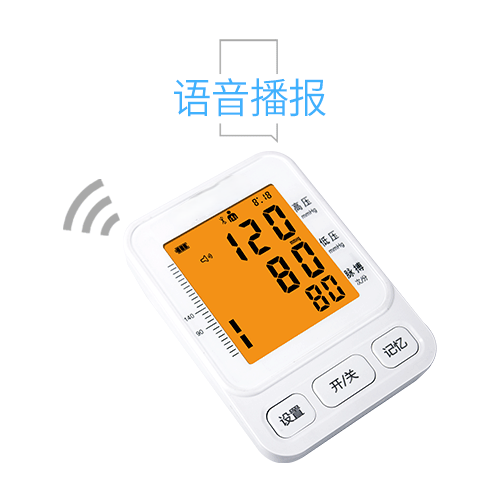

Voice Announcement
The whole measurement process real voice announcement, the results can be heard, easy to operate, the elderly can be operated independently, do not have to see but also hear the blood pressure monitor.

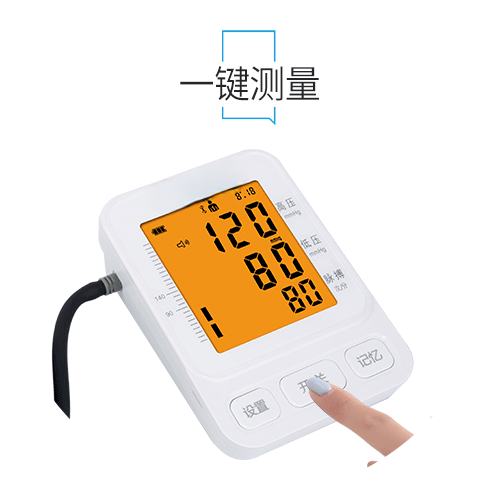

One-button measurement
One key to get the value, the elderly can use it right away, easy to operate. Automatic switch-off design, no need to remember, save time and electricity.
Memory for two people
Dual measurement, 2*99 groups of large-capacity memory, collecting a large number of hypertension patients' clinical data results more stable and accurate.

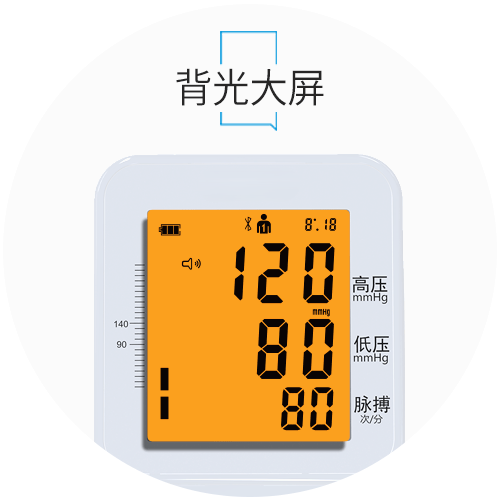

Large backlit screen
High-definition large screen, backlit display, effectively protect the eyes of the elderly, measurement results at a glance, clear readings, intuitive.
Technical Specification
|
Name |
Arm-type electronic sphygmomanometer |
|
Specifications/Model |
JN-163FB |
|
Display mode |
liquid crystal display (LCD display) |
|
Measurement method |
oscillometric method |
|
Measuring range |
Blood pressure: 0-280mmHg(0-37.3kPa) Pulse: 30-180 beats/min. |
|
Accuracy |
Blood pressure: within ±3mmHg (±0.4kPa) Pulse: within ±5% of reading |
|
Pressurisation |
Automatic pressure pumping method |
|
Exhaust |
Automatic rapid exhaust method |
|
Pressure detection |
Resistive pressure sensor |
|
Memory |
Display the values of systolic pressure, diastolic pressure and pulse rate of the previous measurement, up to 99 sets of memory. |
|
Power supply |
3.7V 1000mAh lithium battery |
|
Operating conditions |
Temperature 5℃-40℃(41～104℉); Relative humidity: 15%RH-80%RH; Atmospheric pressure: 86Kpa～106Kpa |
|
Transportation and storage temperature and humidity |
Temperature: -20～55℃(-4～131℉) Humidity: 10%～93%RH |
|
Automatic switch-off |
After starting the sphygmomanometer, if there is no action, the sphygmomanometer should be able to switch off automatically within 5 minutes. |
|
Body weight |
about 300g (including colour box) |
|
Overall dimensions |
140mm×100mm×50mm |
|
Suitable for arm circumference |
22～32cm |
|
Accessories |
cuff, instruction manual (including certificate of conformity, warranty), colour box |
|
Structure and composition |
the product consists of the host and cuffs |
|
Scope of application |
suitable for human blood pressure measurement |
|
Use term |
5 years |

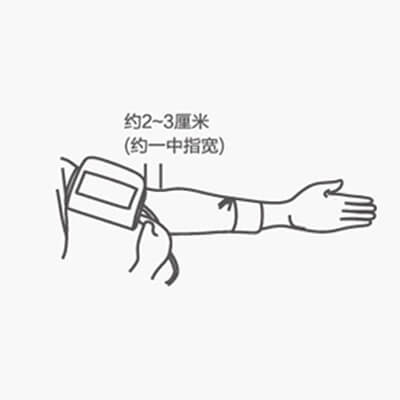

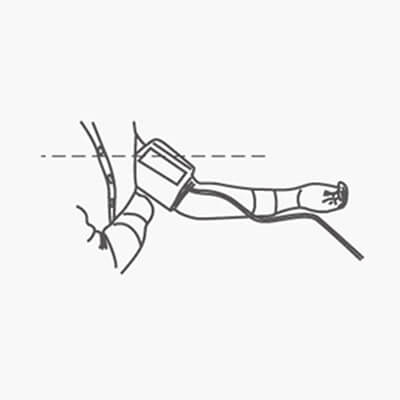

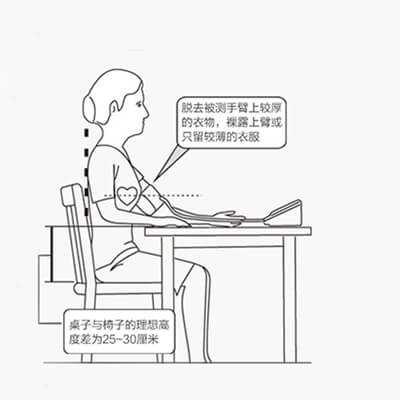

Operation Methods
Please read the instruction manual carefully.
 |
 |
 |
