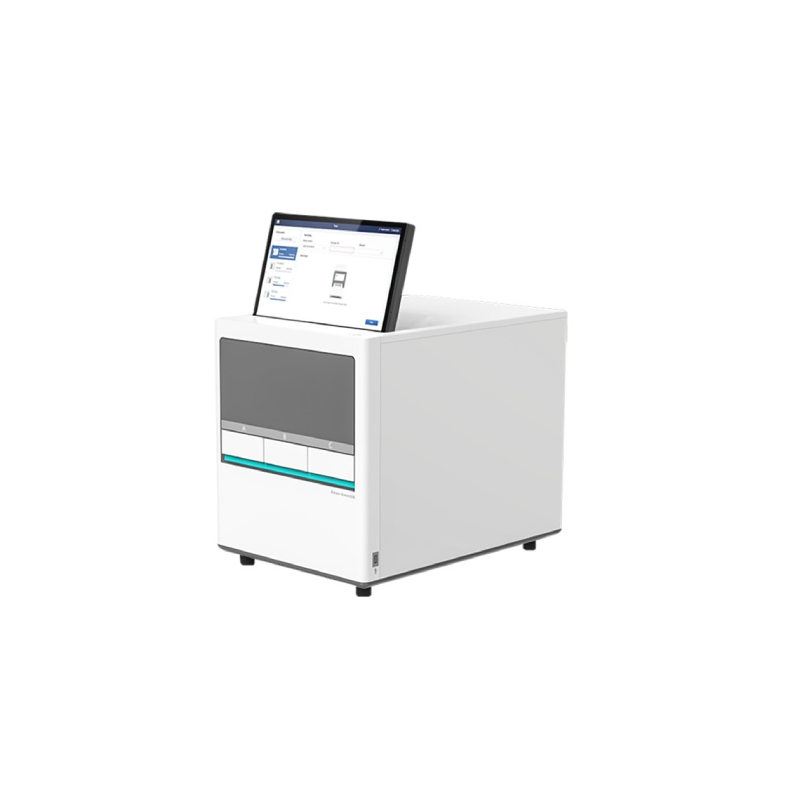

Real-Time Fluorescence PCR - Emos-Gene 400/400A
Product Features
User-friendly operation
Automatic analysis gives negative and positive results, and can meet the needs of qualitative/quantitative, genotyping, isothermal amplification, melting curve and other modes of analysis.
The instrument comes with a 13.3-inch touch screen, which can complete the operation of programme setting, testing, result analysis and report export.
Advanced Ct and image recognition algorithms can achieve result analysis without reference dyes and improve experimental efficiency.
Leading temperature control system
Independent module independent temperature control, high-quality module materials and high-precision module temperature control system combine to ensure the heat conduction effect to achieve excellent temperature uniformity.
Adaptive determination of the height of the hot lid, which can automatically determine the required compression force according to the height of the test tube, improving the sealing and avoiding the volatilisation of reagents.
Fast and reliable optical detection system
Adopting top imaging technology, full aperture optical path detection, fast detection speed, five seconds to complete the detection of three modules, six channels.
The long-life LED light source is equipped with CMOS imaging system and a set of finely adjusted independent filter wheels, which can freely combine channels to cope with multiple detection experiments.
Optical fibre conduction is used to improve fluorescence signal intensity, reduce light conduction loss and eliminate the edge effect of the optical path.
Technical Parameter
|
Product Model |
Emos - Gene 400/Emos - Gene 400A Real - Time Fluorescent Quantitative PCR Instrument |
|
Consumable Type (Emos - Gene 400) |
3×32×0.2mL (Compatible with single wells, 8 - tube strips, white or transparent tubes. Caps need to be transparent) |
|
Consumable Type (Emos - Gene 400A) |
3×32×0.1mL (Compatible with single wells, 8 - tube strips, white or transparent tubes. Caps need to be transparent) |
|
Detection Channels |
C1/C2/C3/C4 |
|
Applied Dyes |
FAM, SYBR Green I / VIC, HEX, TET, JOE / ROX, TEXAS - RED / Cy5, Quasar - 670 |
|
Module Temperature Range |
4℃ - 99.9℃ |
|
Average Heating Rate |
4℃/s |
|
Average Cooling Rate |
4℃/s |
|
Temperature Control Precision |
0.1℃ |
|
Temperature Uniformity |
±0.2℃ @ 95℃ |
|
Temperature Accuracy |
±0.15℃ |
|
Hot Lid Temperature |
30℃ - 110℃ |
|
Sample Repeatability |
CV ≤ 1% |
|
Sample Linearity |
| r |≥0.999 |
|
Excitation Light Source |
High - power white LED |
|
Detection Element |
High - performance CMOS |
|
Gradient Mode |
Single - module gradient temperature control |
|
Display |
13.3 - inch touch screen |
|
Operating System |
Windows 10 and above |
|
Power Input |
100 - 240V～ 50Hz 1400VA |
|
Overall Dimensions (D×W×H) |
504mm×360mm×410mm |
|
Product Weight |
35kg |
